Profiles:

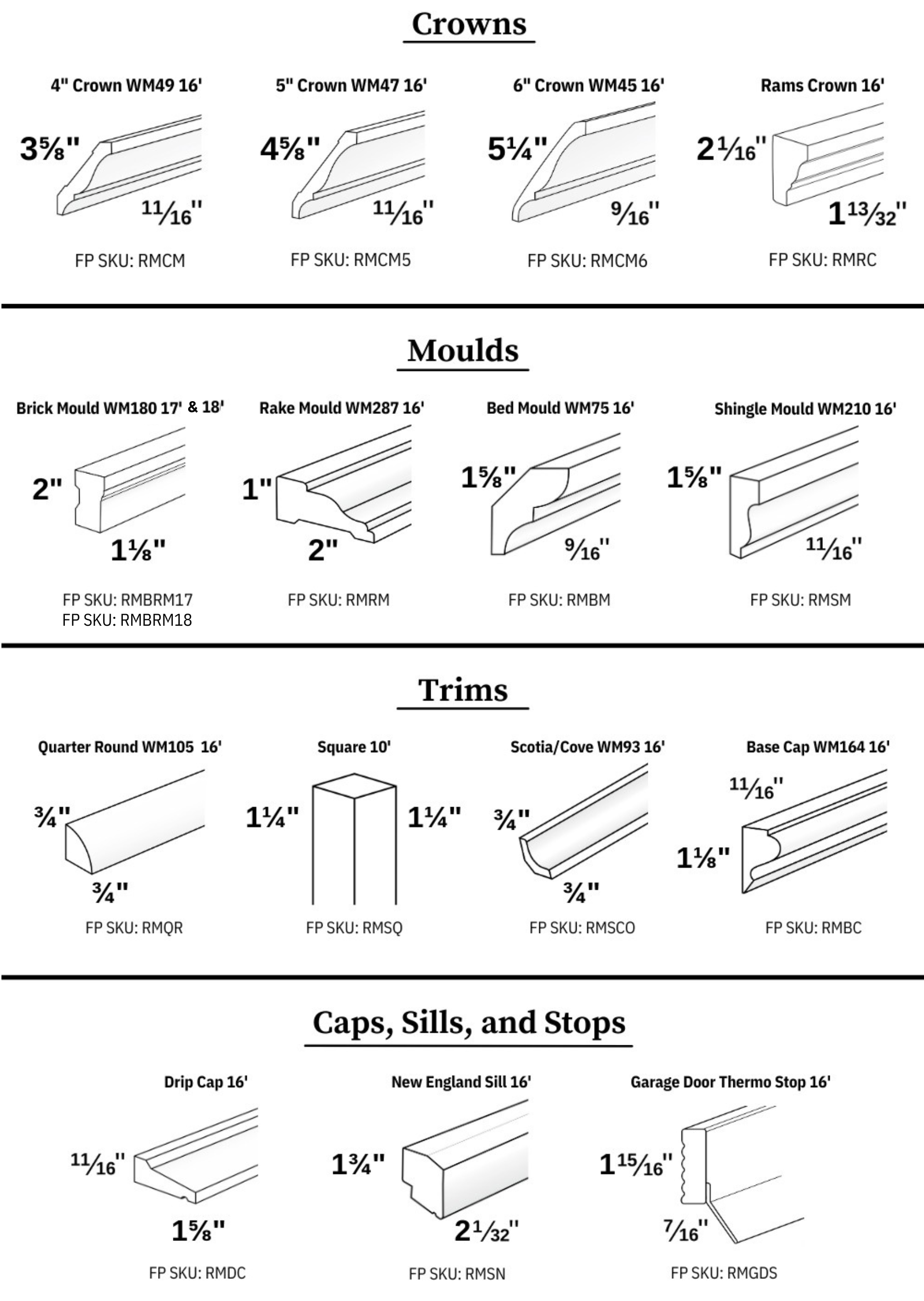

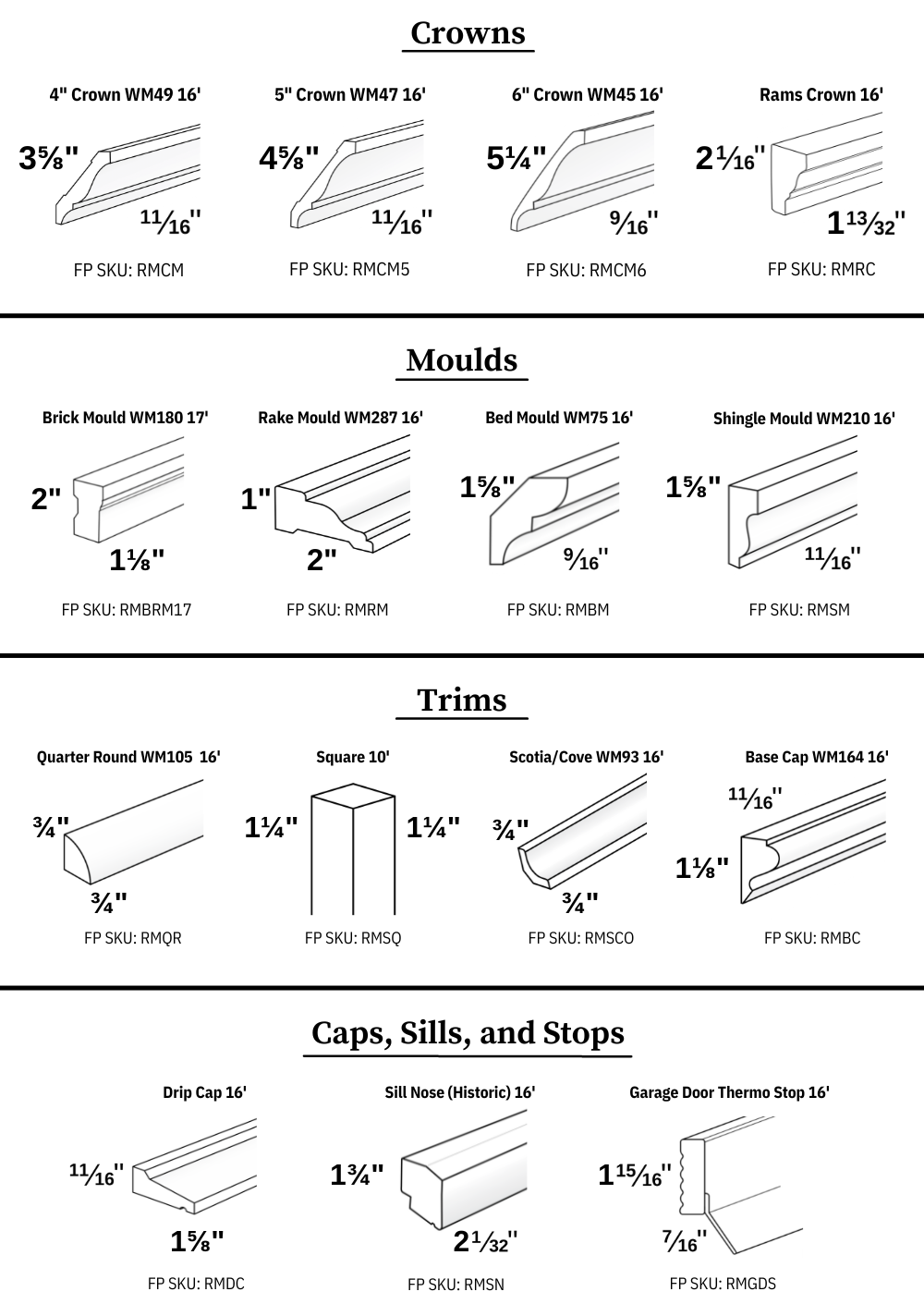

Moulding Application Cheat Sheet:

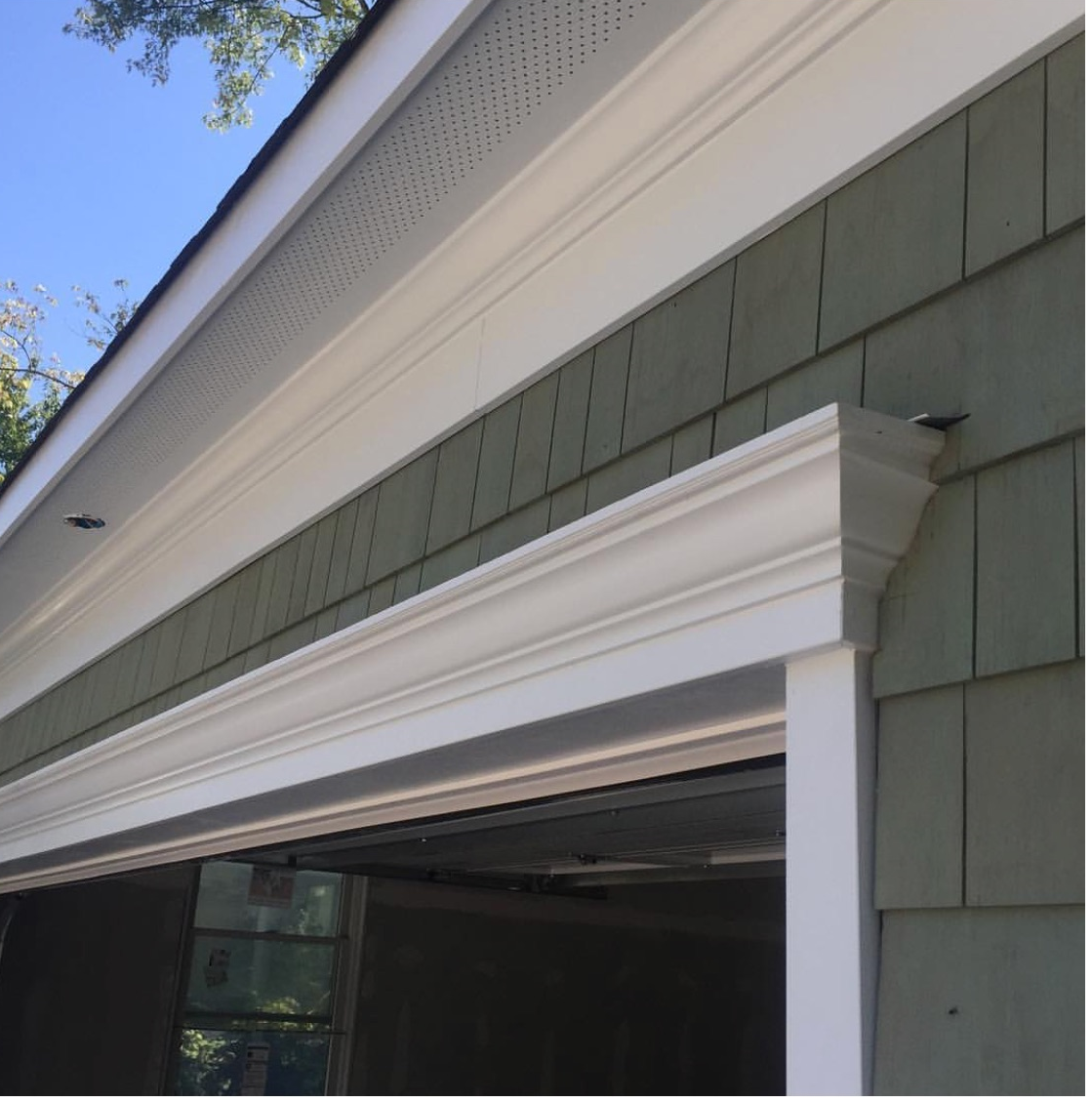

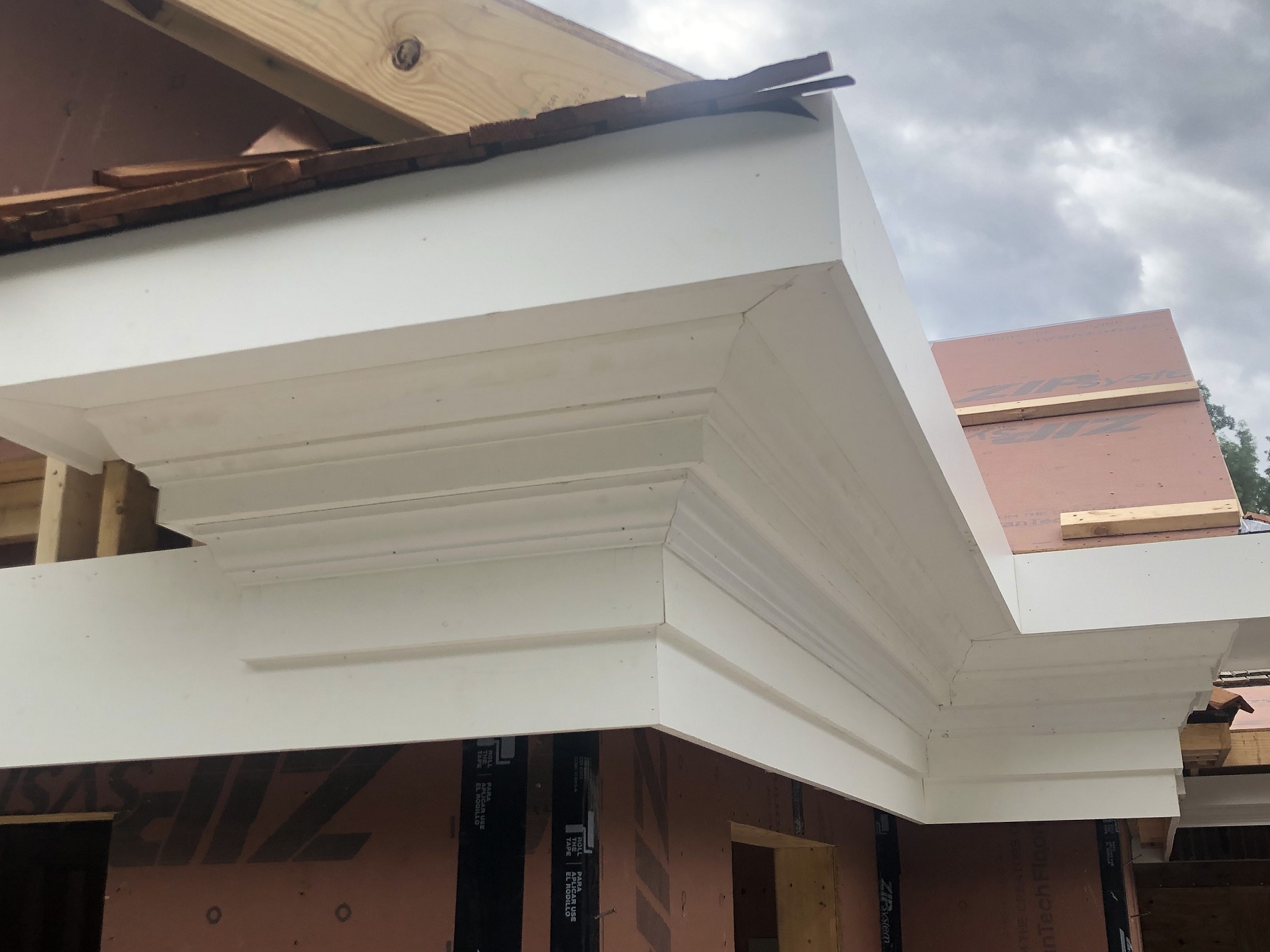

Crowns
- Crown - RMCM, RMCM5, AND RMCM6
- Standard crowns of various heights used to trim the transition between wall and ceiling
- Rams Crown – RMRC
- An alternative crown option. Can be used for standard crown, but more commonly used above windows and doors as a decorative crown.
Moulds
- Brick Mould – RMBRM17 / RMBRM!8
- Moulding used in exterior construction to frame the perimeter of windows and doors. But, more commonly used for doors.
- Rake Mould – RMRM
- Moulding used on the inclined/sloped end of a gable roof. Installed over the fascia and below the soffit.
- Bed Mould – RMBM
- A shallow crown like moulding that is often used as the build-up of a decorative crown
- Shingle Mould – RMSM
- Moulding used below the roof line. Installed over the fascia and below the soffit.
Decorative
- Scotia/Cove – RMSCO
- A simple scotia/cove profile used in corners to hide gaps between transitions
- Quarter Round – RMQR
- A simple quarter round used in corners to hide gaps between transitions
- Square – RMSQ
- A simple square profile used in corners to hide gaps between transitions
- Base Cap – RMBC
- A decorative detail used on top of square trim for base detail, or between trim for raised panel columns.

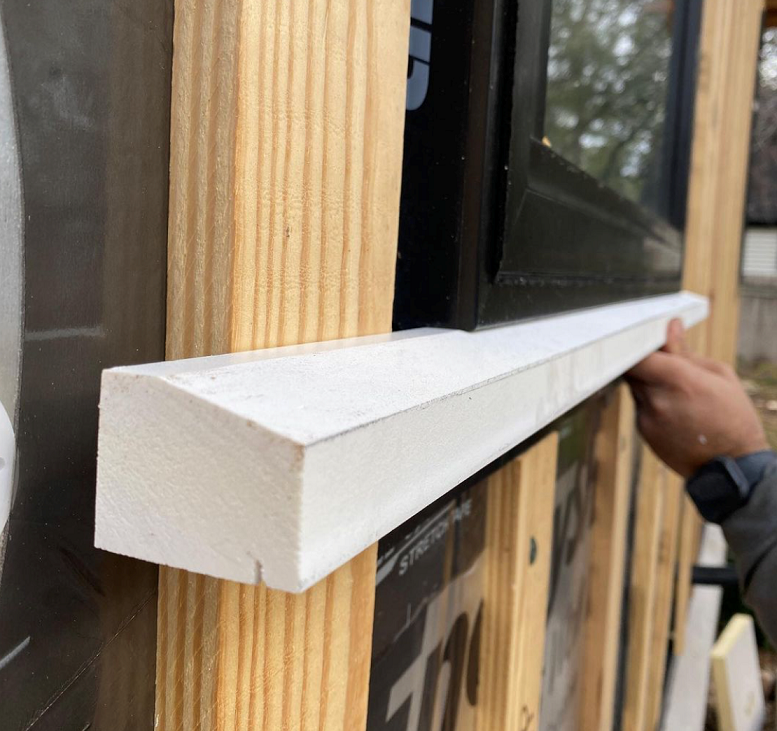

- Drip Cap – RMDC
- A sloped surface with a drip edge to shed water from flat transition pieces. Often used above and below windows, above doors, and above wainscotings.
- Sill Nose – RMSN
- A decorative sill installed below the window
Thermostops

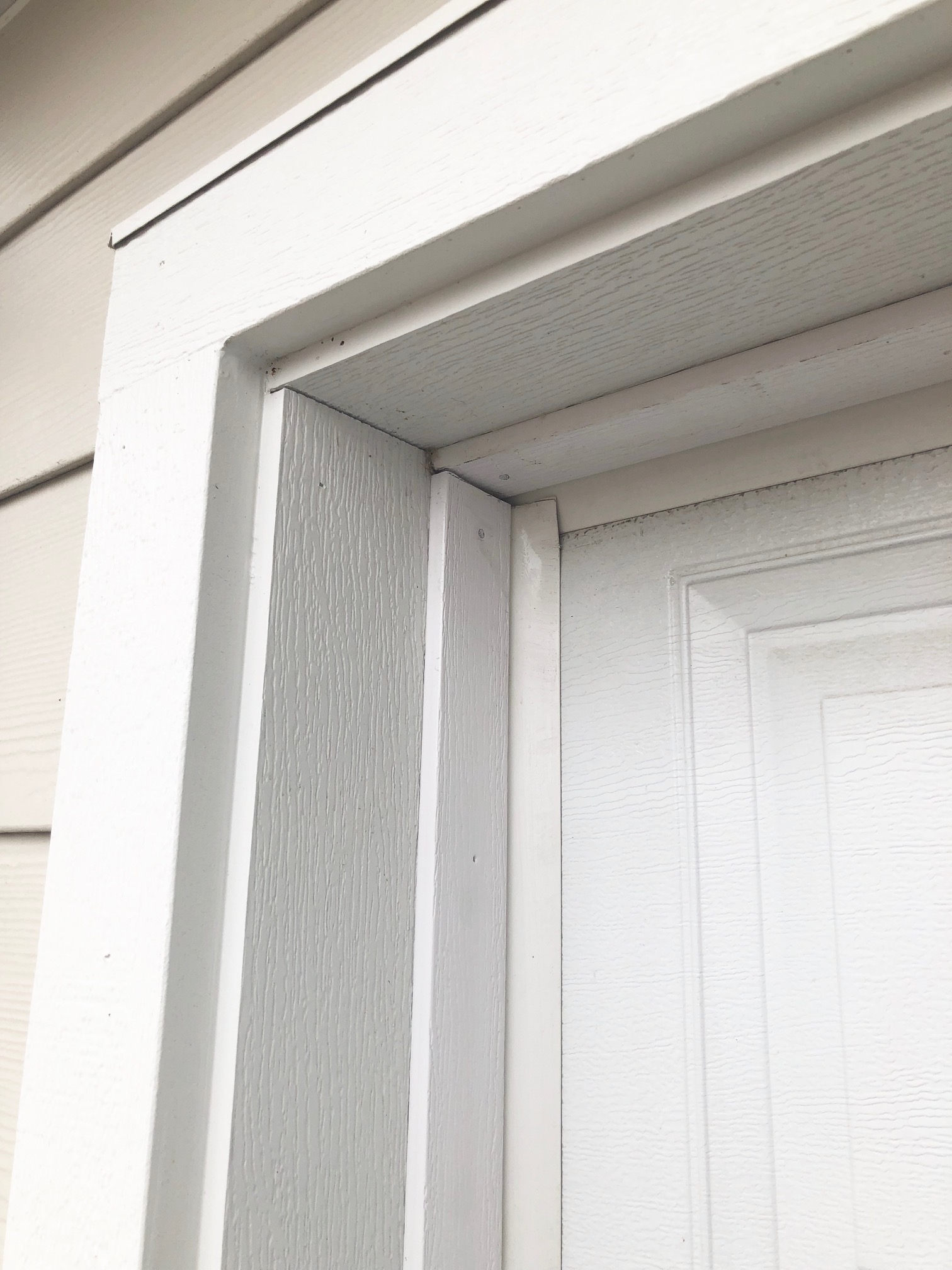

- Garage Door Stops - RMGDS / RMGDSBLACK
- A 1-5/16” trim with a flexible plastic that helps to seal the garage door trim from wind and rain
Features and Benefits:
-100% cellular PVC
-Low maintenance: moisture and termite-proof; mold and mildew resistant
-Lifetime Never Rot Warranty
-Superior nailing and gluing
-Time and labor-saving installation
Restoration Millwork PVC Trim Brochure
Restoration Millwork PVC Specifiers Guide
Restoration Millwork PVC Warranty
Restoration Millwork PVC Installation
3-5/8" Crown:
FP SKU RMCM
S4S Stock with 4-5/8" Crown and 2-3/4" Crown:
FP SKU's RMCM5 and RMCM3
16' Garage Thermostop:
FP SKU RMGDS
16' Sill Nose:
(FP SKU RMSN7631):
Fasteners:
6D or 8D galvanized nails or pneumatic nailer with stainless steel heads
Fasten nails 12" O.C., approximately 3/4" from the edge
PVC Glue:
Temperature variations will cause PVC to expand or contract, so it's recommended to glue all joints and miters using a high-quality instant glue or PVC cement.
Painting PVC:
Restoration Millwork PVC does not require painting for protection, but it can be painted with 100% acrylic latex paint to achieve custom colors. A second coat may be needed to achieve desired colors. Dark colors are not recommended with PVC, so be sure to check what's allowed before painting.
