Profiles:
Moulding Application Cheat Sheet:

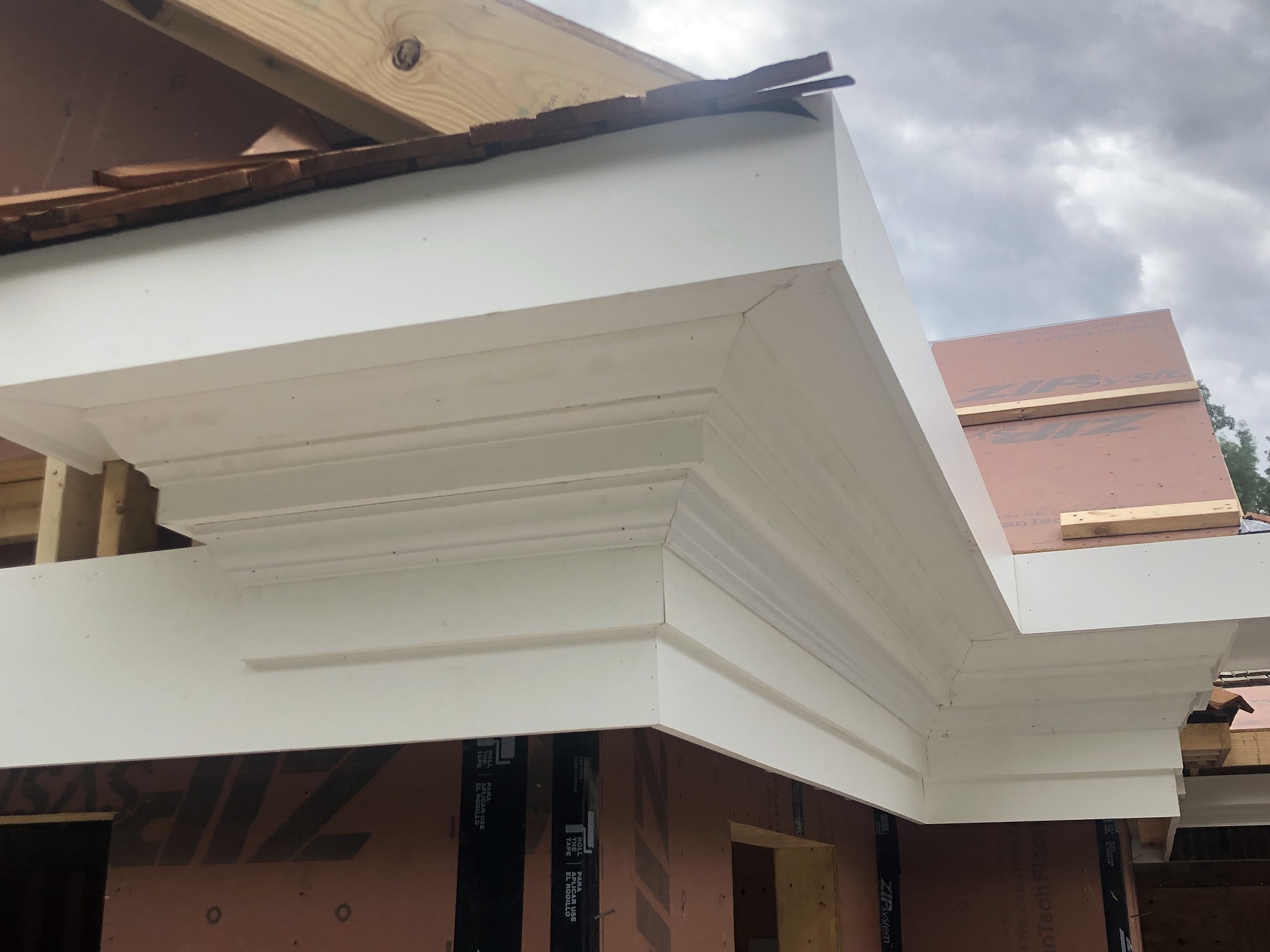

Crown: Decorative moulding installed between frieze boards and soffit
Shingle Mould: Decorative moulding installed on the fascia just below the roofing shingles. Often times referred to as Rake Mould.
Drip Cap: Moulding installed over windows and doors, typically on top of brick mould
Brick Mould: Moulding installed around windows, historically bumps up to a brick exterior
Rams Crown: Moulding installed over windows and doors, typically on top of S4S trim
Sill Nose: Moulding installed at the exterior base of windows
Features and Benefits:
-100% cellular PVC
-Low maintenance: moisture and termite-proof; mold and mildew resistant
-Lifetime Never Rot Warranty
-Superior nailing and gluing
-Time and labor-saving installation
Restoration Millwork PVC Trim Brochure
Restoration Millwork PVC Specifiers Guide
Restoration Millwork PVC Warranty
Restoration Millwork PVC Installation
3-5/8" Crown:
FP SKU RMCM

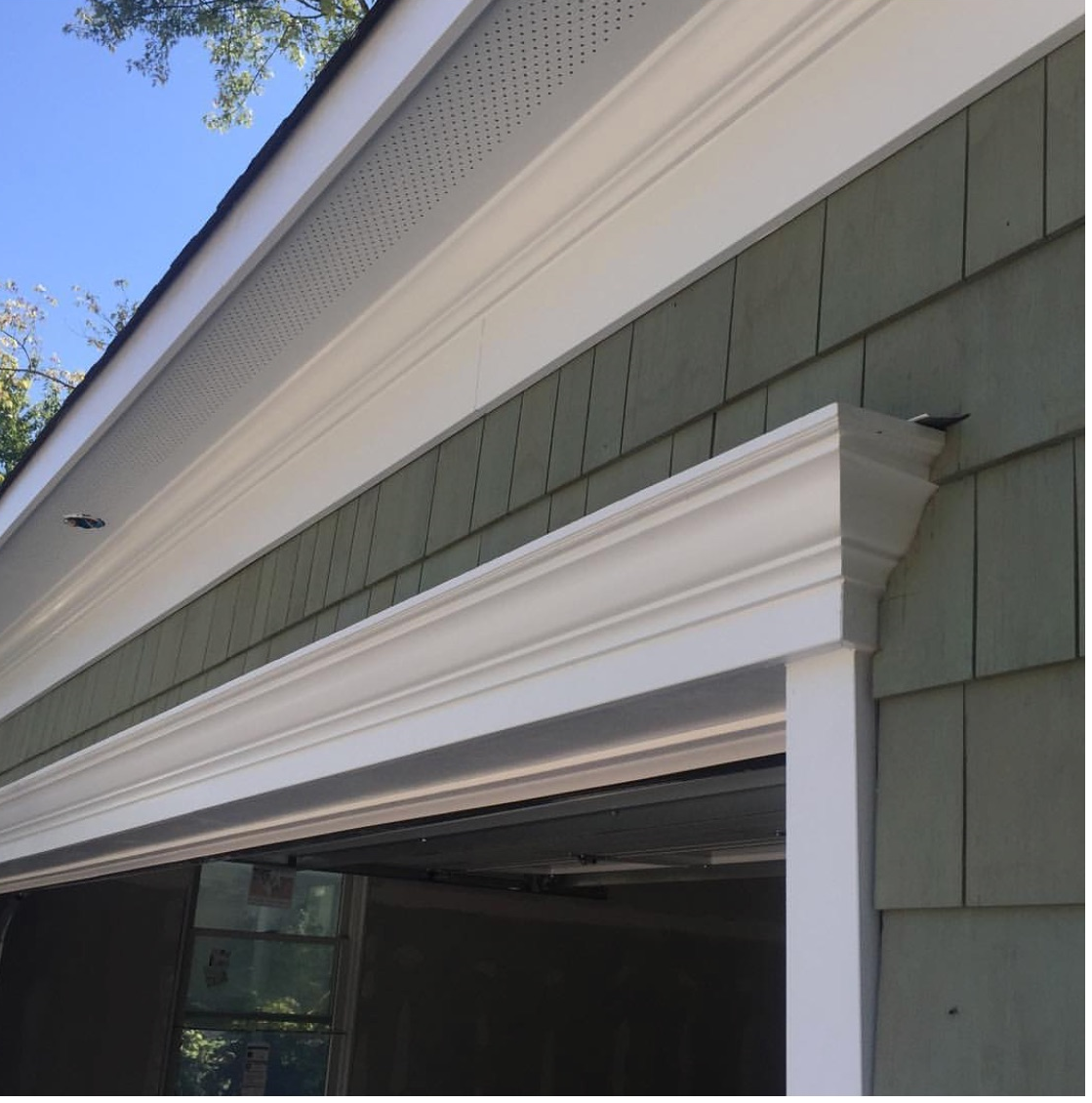

S4S Stock with 4-5/8" Crown and 2-3/4" Crown:
FP SKU's RMCM5 and RMCM3

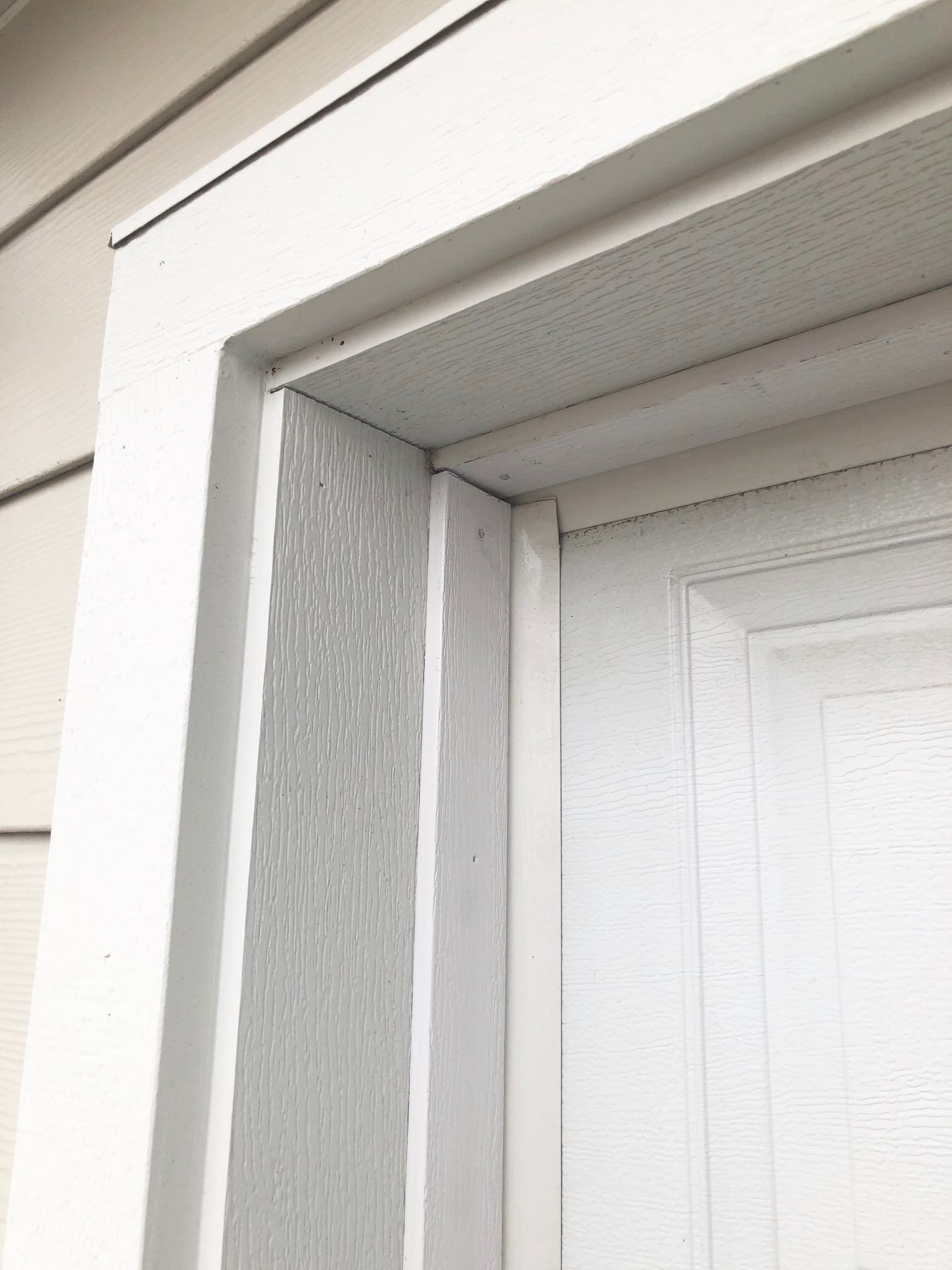

16' Garage Thermostop:
FP SKU RMGDS
16' Sill Nose:
(FP SKU RMSN7631):
Fasteners:
6D or 8D galvanized nails or pneumatic nailer with stainless steel heads
Fasten nails 12" O.C., approximately 3/4" from the edge
PVC Glue:
Temperature variations will cause PVC to expand or contract, so it's recommended to glue all joints and miters using a high-quality instant glue or PVC cement.
Painting PVC:
Restoration Millwork PVC does not require painting for protection, but it can be painted with 100% acrylic latex paint to achieve custom colors. A second coat may be needed to achieve desired colors. Dark colors are not recommended with PVC, so be sure to check what's allowed before painting.
